Scan-to-CAD

The easiest-to-use reverse engineering toolkit for feature extraction and CAD modeling from 3D scan data. The software module Scan-to-CAD is a part of the Creaform Metrology Suite™

Creaform Metrology Suite™

The direct link from Scan and straight into CAD

Part of the Creaform Metrology Suite™, Scan-to-CAD is a post-treatment software module designed to optimize meshes and prepare 3D scans for 3D printing. Scan-to-CAD also enables designers and engineers to finalize 3D scan data and use it in their reverse engineering and product development workflows.

With a fast processing time that promptly optimizes the mesh and extracts all needed geometrical information, designers and engineers can quickly go back to the CAD workflow they already know.

Satisfied with its performance and complete toolset, thousands of users have already endorsed Scan-to-CAD, selecting it as their favorite complement to CAD software.

Mesh optimization + 3D Printing

Scan-to-CAD’s powerful preparation and improvement tools let you quickly edit the mesh and align 3D scan data. After cleaning and improving the 3D scan data, you get a usable and optimized mesh ready for 3D printing or other applications.

Product development + Reverse engineering

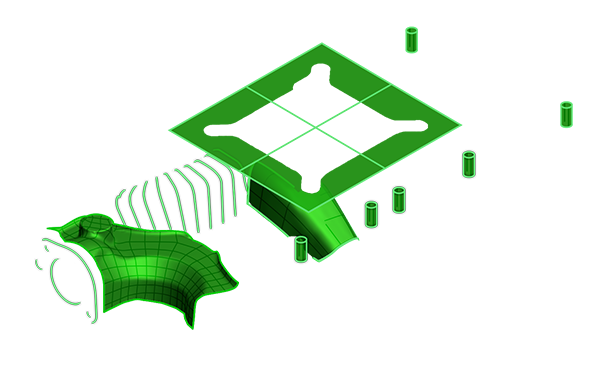

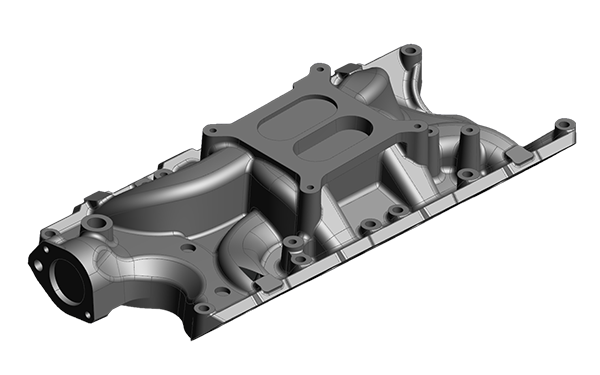

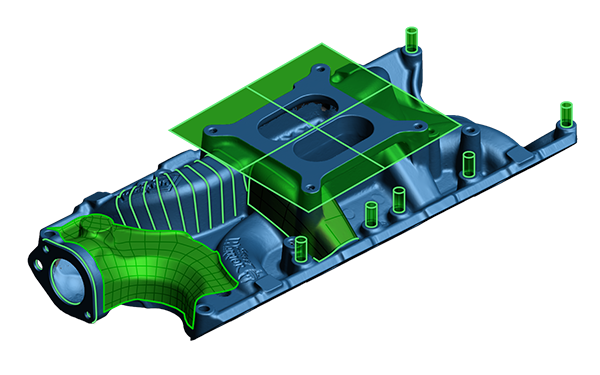

Scan-to-CAD provides only the needed tools and features to integrate 3D scan data into your preferred CAD software, leveraging its design and modeling capabilities. Its intuitive functions let you easily extract information from the mesh and transfer it to generate CAD entities for 3D modeling.
